BC 7500
Specifications
Length 7.5m
Beam 2.95m
Engines Twin 130hp to 200hp Outboards
Construction options
- Alloy plate
- Advanced composite construction
Weight (Dry Hull)
- Alloy construction: 2800kg
- Composite construction:1900kg
Configuration options
- Center Cabin
- Center Console
- Full Cabin
COMMERCIAL OPERATIONS NOTES
STRUCTURAL DESIGN STANDARD: ISO 12215-5:2008, DESIGN CATEGORY: A-OCEAN,
DESIGN LIMITATIONS (COMPOSITE BUILD): FULL LOAD 4500KG, 40KTS, HALF LOAD 3500KG, 45KTS
NSCV OPERATIONAL CATEGORY: 2C, LIMIT 10 PASSENGERS/CREW, UPRIGHT FLOATION
The unique asymmetric tunnel geometry generates spray at specific points inside the tunnel creating a high-density air/water vapor cushion that the hull then rides on. The result is a significantly dampened ride and reduced full consumption. Full length longitudinal steps give the hull efficient lift and dynamic stability and the catamaran hull configuration gives superior stability in all conditions. Additionally, all BC Tech catamarans feature self-draining decks ensuring superior swamping protection.
All BC Tech catamarans are designed and built to Australian commercial craft standards (NSCV). This means that if you use your boat for private use you know that the structure, stability and floatation of your BC Tech catamaran will keep you and your family safe. If you are a commercial operator you will benefit from the lower towing weight of the advanced composite construction and the increased passenger capacity of the BC Tech cat compared to a similar length monohull.

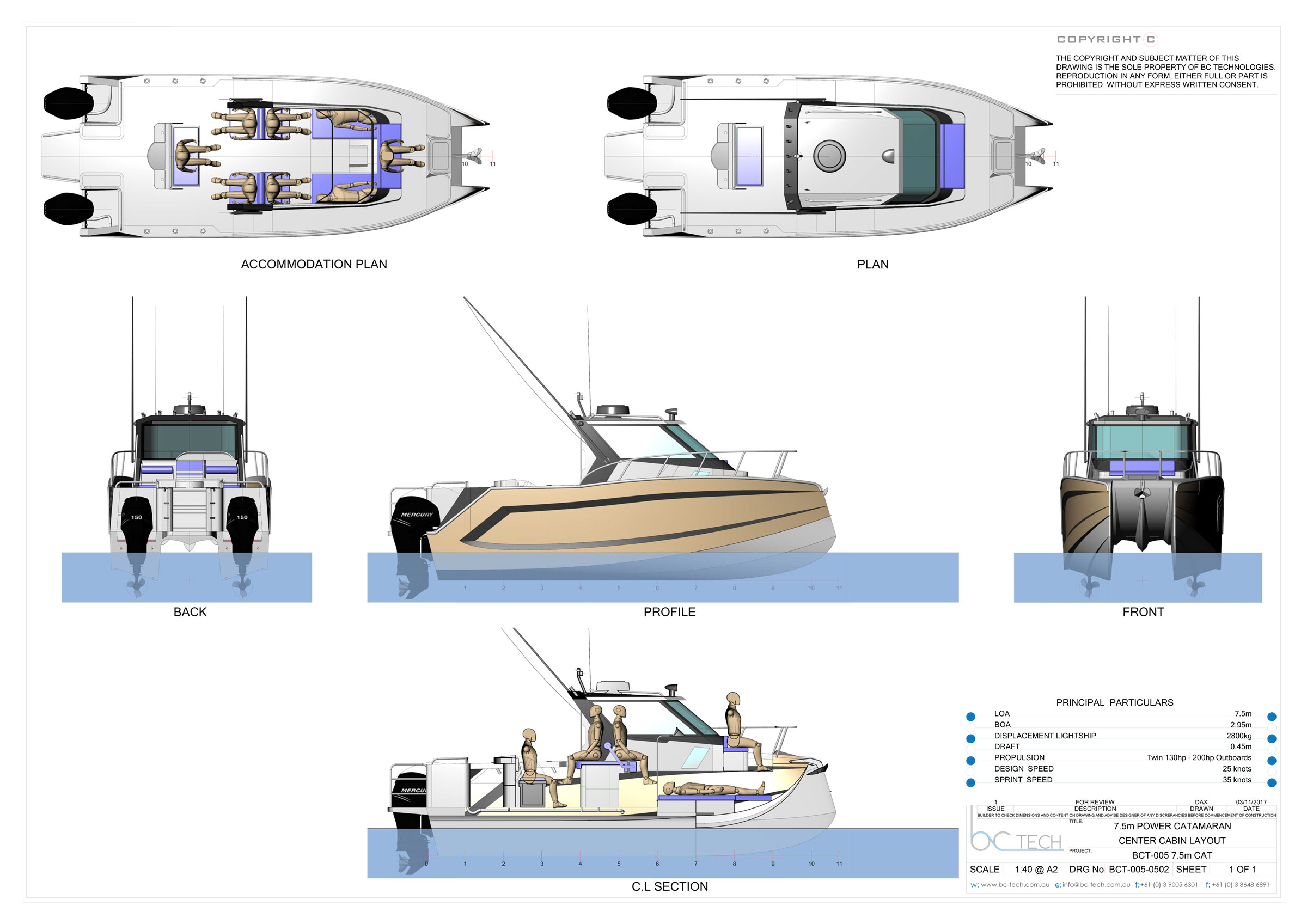

Configuration Options
Center Cabin
Center cabin has been specifically designed for sportfishing.
Features a full stepped cabin walk around with battle stations both forward & aft for landing that trophy fish. There is an enclosed head and twin berth forward of the helm, reversible seating for four aft of the helm & a twin sink work station at the aft end of the cockpit with built in 115lt ice box & live bait tank.
Full Cabin
The full cabin features a traditional full cabin layout with generous sidedecks for facilitating easy access forward. There is an enclosed head and twin berth forward of the helm, reversible seating for four aft of the helm & a twin sink work station at the aft end of the cockpit with built in 115lt ice box & live bait tank.
Center Console
A more traditional centre console layout featuring an enclosed head under the helm, full single level walk around & seating both fwd & aft of the helm.
